Smokeless air flow carbonization furnace for long burning time charcoal making

  • 1 - 4 Sets
    $32,000.00
  • >=5 Sets
    $31,500.00
Application:
industrial small granules materials charcoal production
Type:
Air Flow
Model Number:
THJ1200
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Mingyang
Effective Volume:
8m3
Dimension(L*W*H):
11300*2100*2500
Weight:
28t
Voltage:
380v 50hz, 220v 50hz customized
Power(W):
20.75
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Biofuel Industry
Raw material:
rice husk, pomace,begass,sawdust
Usage:
carbonizing charring materials
Keywords:
air flow carbonization furnace
Advantage:
high carbonization rate
Application:
biofuel,charcoal making
Feature:
Easy Operation
Automatic:
semi
worker needed:
2-3 persons
Equipped With:
Flue Gas Purifier
Carboniztion type:
Continuous Air Flow
Supply Ability
Supply Ability:
6 Set/Sets per Month
Packaging & Delivery
Packaging Details

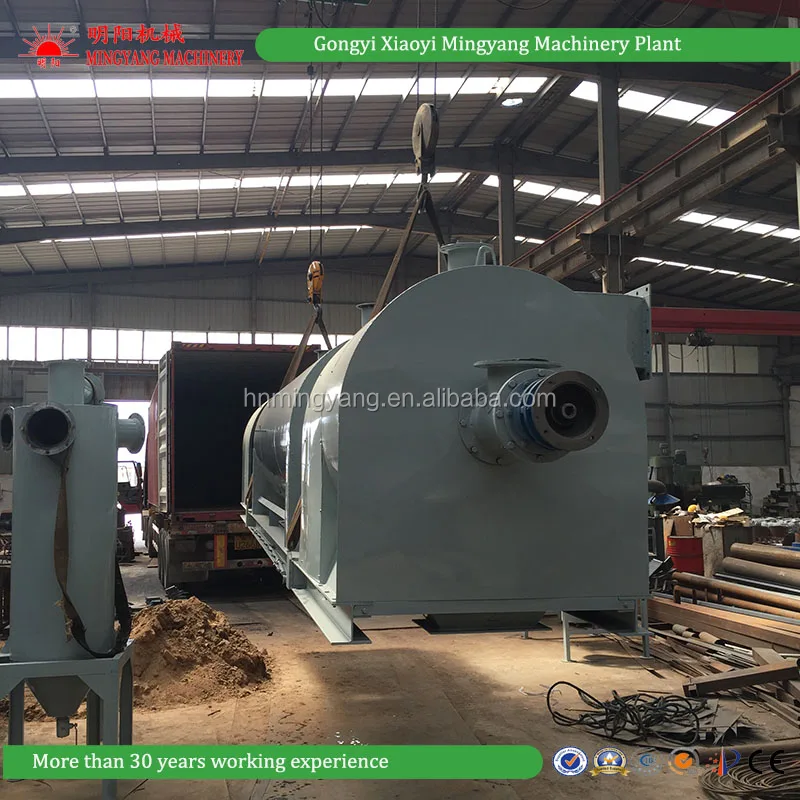

air flow carbonization furnace: simplat anti broken packing put into container
Port
qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 50 To be negotiated
Video Description
Product Description

Application of  air flow carbonization furnace

The air flow carbonization furnace(drying and carbonizing tandem machine) is a new type of carbonizing machine which can feed raw materials and produce finished charcoal at the same time. It is an external heated drying and internal carbonizing machine. The whole production process does not produce harmful gas and no smoke emission.It produces charcoal directly from Peanut shells, sawdust, corn stalk, bagasse, branches, rice husk, bamboo shavings, sorghum stalk, sunflower seed shell, lees, corn cobs, coconut, coffee grounds, cotton pole, bean pole, dead leaves, sweet potatoes, grass biomass raw materials, waste residues, medical pharmaceutical companies, sludge, and other materials with size less than 50mm.This is the best choice of waste agriculture recycling as well as an efficient way to reduce the tension of supply and demand of resources in our country.

Charcoal is a kind of renewable energy fuel that can be recycled from biomass waste. Its calorific value is higher than that of similar raw materials, and it burns better than ordinary coal.It can absorb toxic gases, such as methanol generated after decoration;When burning smokeless, tasteless, non-toxic, clean and sanitary, has the broad market potential, easy to sell, quick effect, large use, large market demand.

Technicai Parameters of air flow carbonization furnace
Model
capacity
Max temperature
Machine Auxiliaries
THJ 800
400-500kg/h
700 degree
gasifier,dry dust collector,air-lock valve,condenser,tar separator,draught fan,burner
THJ1000
600-800kg/h
700 degree
THJ1200
800-1000kg/h
700 degree
THJ1500
1000-1200kg/h
700 degree

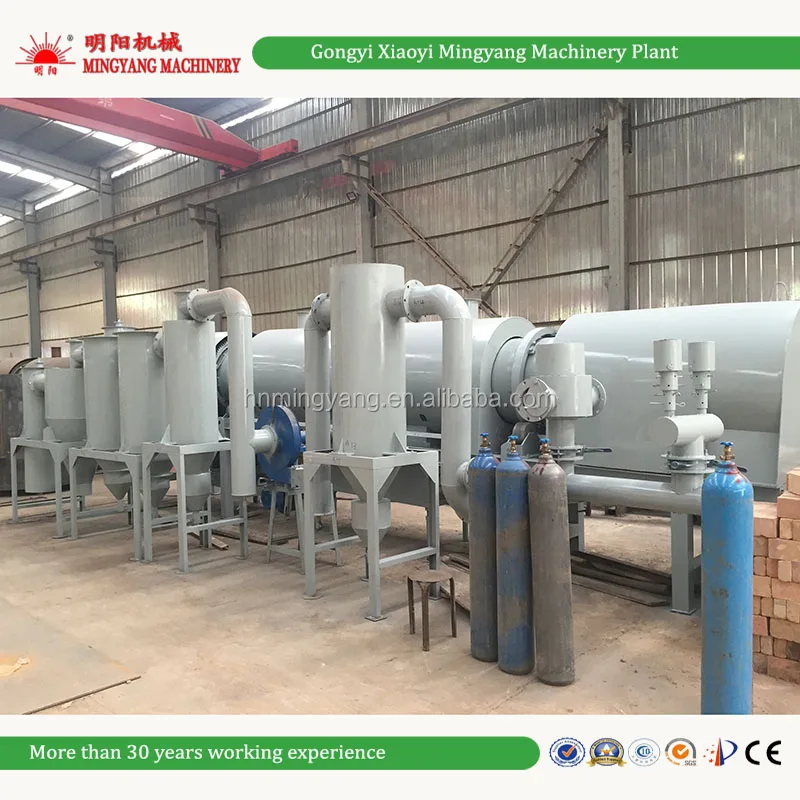

Production process of Mingyang air flow carbonization furnace

Biomass particles no more than 50mm and moisture content less than 12% can be directly carbonized into this air flow carbonization furnace, for example: sawdust, rice husk, fruit husk, palm husk, peanut husk, bamboo shavings, shavings and so on can be directly carbonized;Raw materials with large size (above 50mm), such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk, need to be crushed firstly.If the moisture content is more than 30%, we need to choose a dryer to cooperate with the production process.

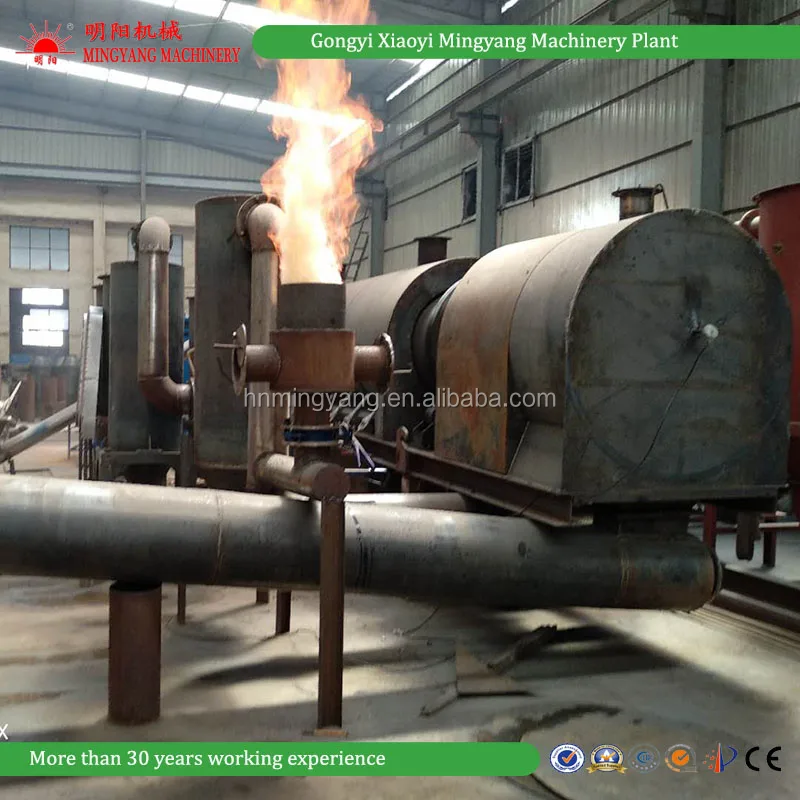

Description of process flow: gasifier (liquefied gas or natural gas) is used for heating in the early stage of the main engine.Internal temperature rise to a certain degree of carbonized machine began to furnace feed, raw material in the furnace pipe after drying, carbonizing, begin to produce flue gas, flue gas recovery after spraying, cooling, purification, the induced draft fan sent to the burner for carbonizer continue heating, gasifier gasification work gradually stop to shut down, only the use of natural gas;The carbonized raw materials enter the finished products for cooling and output.Since then, the equipment can continuously feed, continuously out of the finished products, into the continuous carbonization stage;Spray water and cooling water of purification system and cooling system can be recycled.

Main Features of Mingyang air flow carbonization furnace

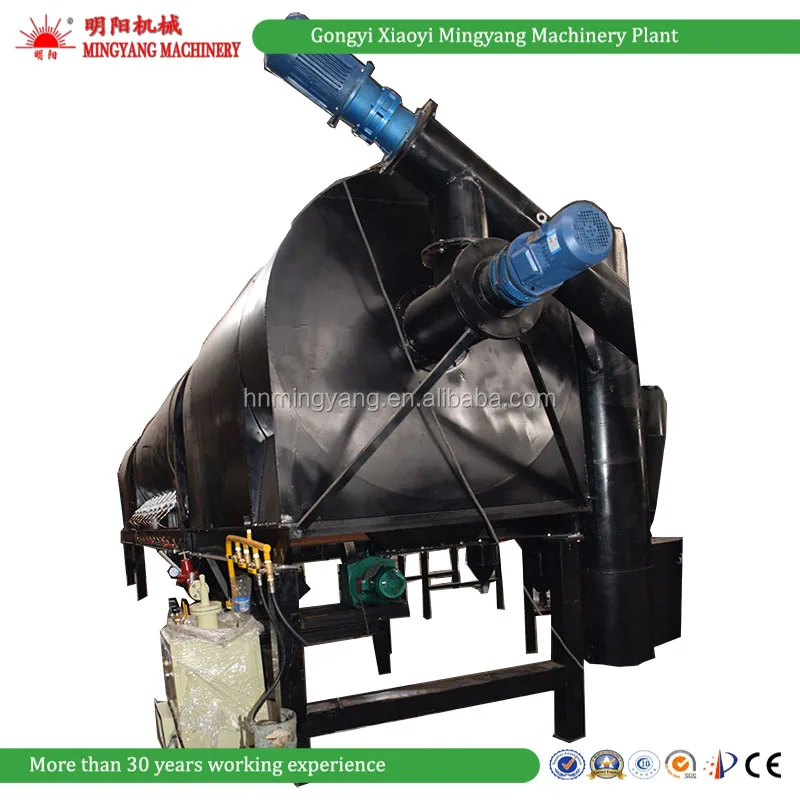

The air flow carbonization furnace (drying and carbonizing tandem machine) host: for the cylinder horizontal, the overall diameter of 1500 mm, length of 11 m (also can be customized according to the customer demand), for the hot spot in the middle of the cylinder, the host has simple structure, convenient operation, compared with the previous generation of vertical tube carbonization machine more than mechanical transmission parts have sharply reduced, a design more reasonable, reduce the failure rate more than 80%;Compared with the previous generation of vertical carbonizer, the feed size of the host machine increases by more than 20-30mm.The cylinder of the main engine keeps rotating to avoid the disadvantage of the old generation vertical carbonizing machine only burning a little, greatly extending the service life of the carbonizing machine, at the same time the output and carbonizing uniformity and quality have been greatly improved.

Detailed Images

Machine main parts.

Name: Main body of  air flow carbonization furnace
Brand: Mingyang

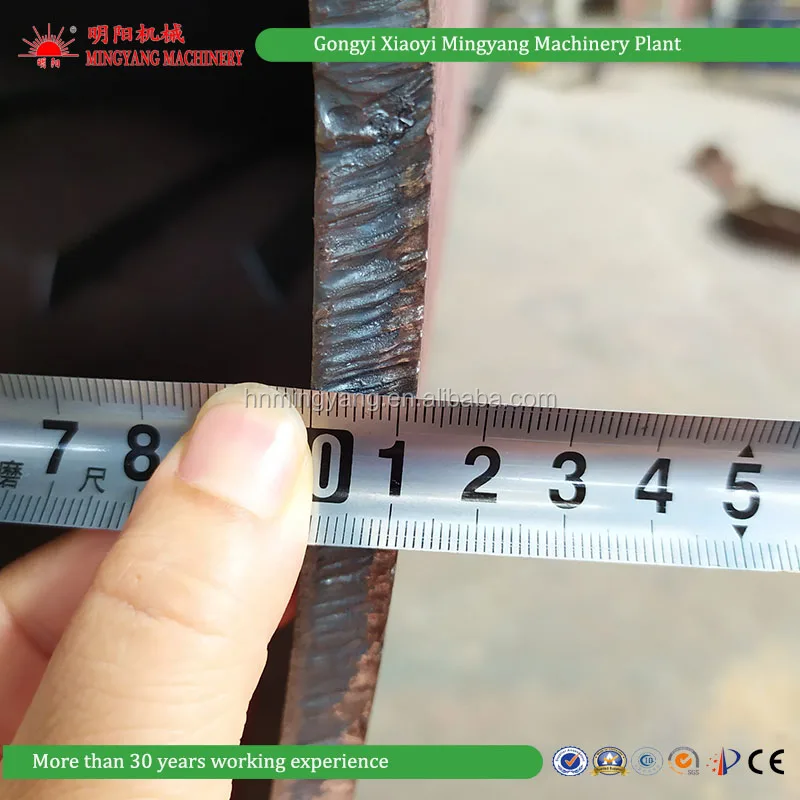

Q245r 12mm boiler professional steel body. protect the carbonized materials and no deformation under High temperature.

Machine Parts

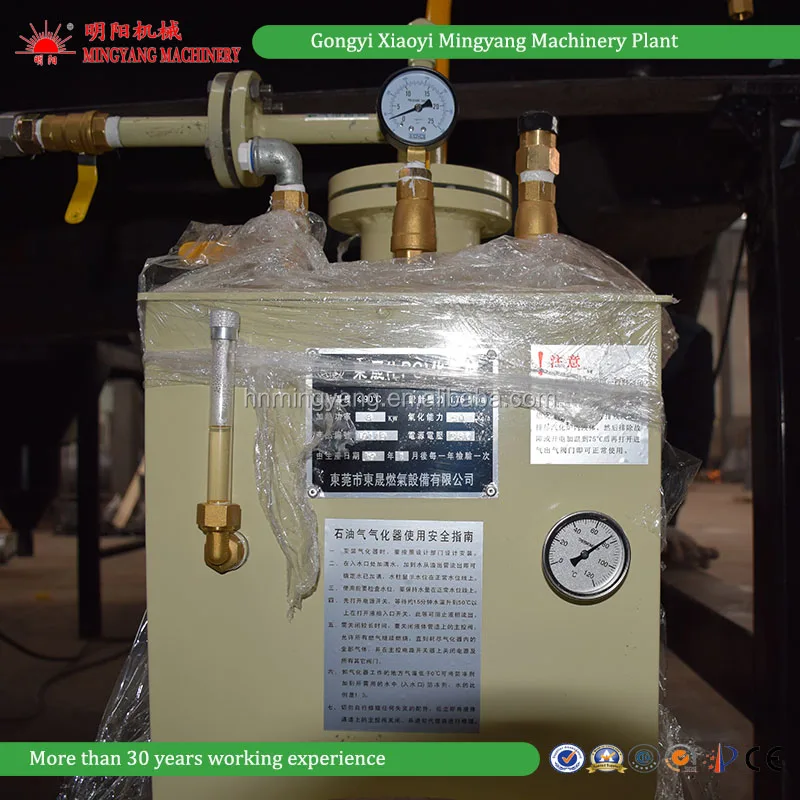

Name: gasifier of  air flow carbonization furnace

Brand: Mingyang

(1) for heating the stove at the first stage
(2)separately control the temperature

(3) adjust the heating, keep the carbonization efficiently

Main machine parts

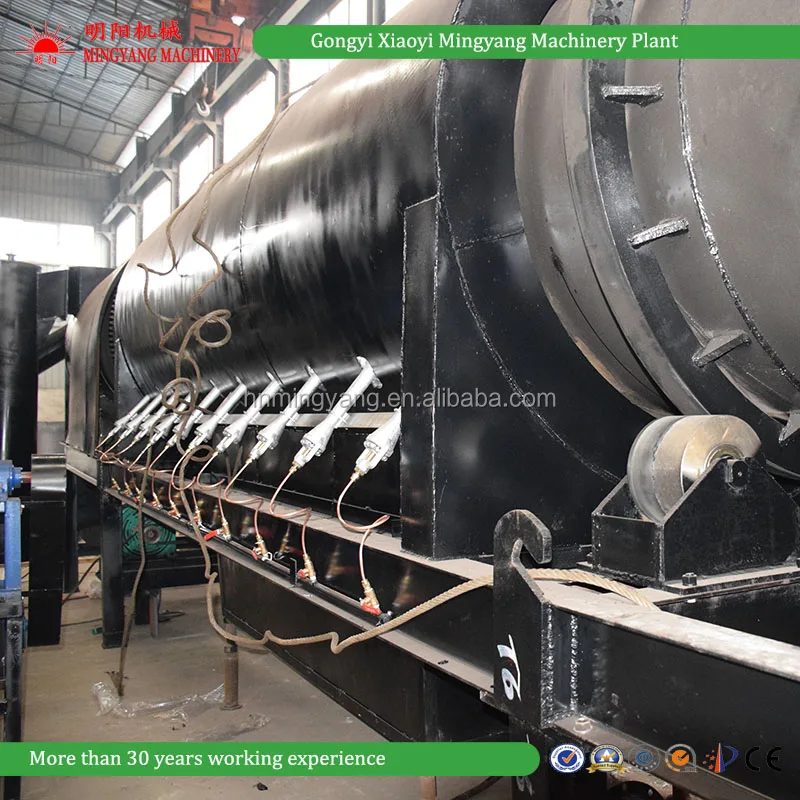

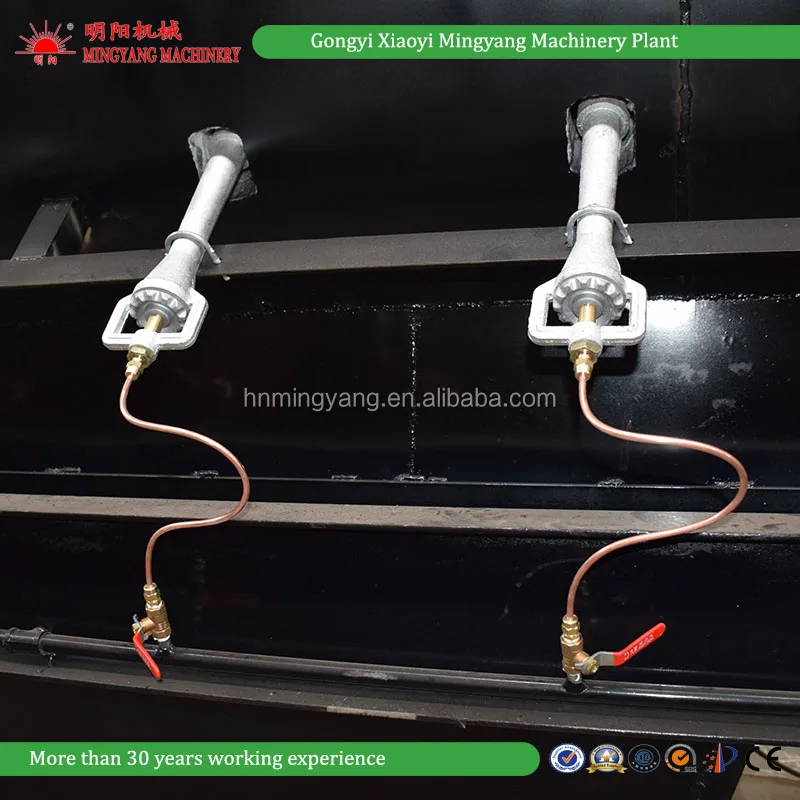

Name: igniter of air flow carbonization furnace

Brand: Mingyang

heat resistance thermal steel

new type, seprately independently igniting gas, for even heating for the carbonization innner furnace.

Machine Parts

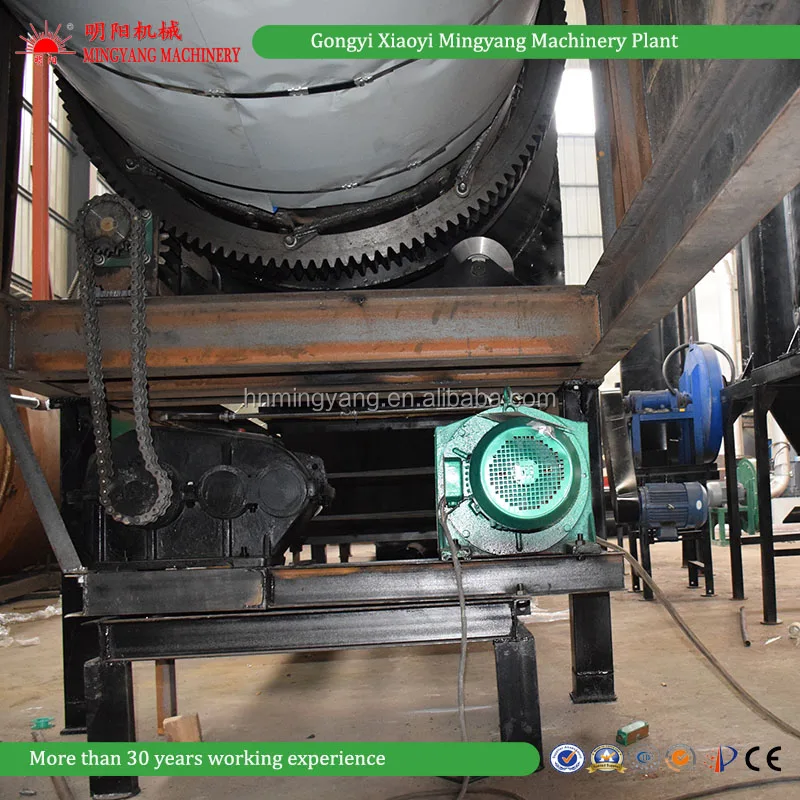

Name: Gear driving of air flow carbonization furnace

Brand: Mingyang


Strong structure drive the furnace stably, hold and move the heavy furnace.

Main Machine parts

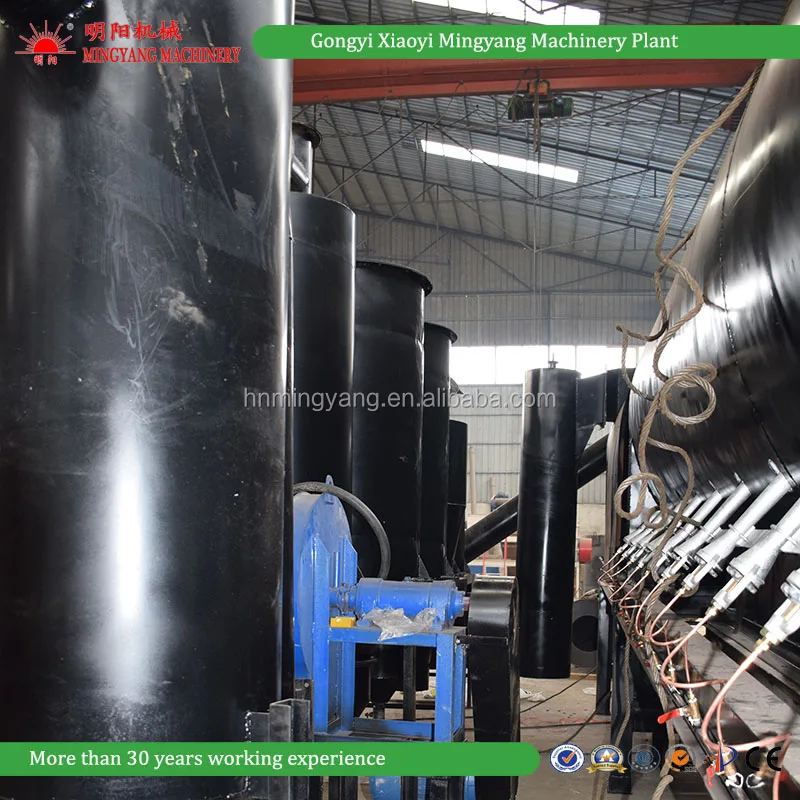

Name: Purification tank of  air flow carbonization furnace
Brand: Mingyang

(1) purification tank and the exhaust-heated cycle pipe.
(2) purify the smoking no hazard waste emission
(3)filter the wood tar environment friendly

Why choose us

We are professional

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( air flow carbonization furnace, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.

We produce advanced high quality products as  air flow carbonization furnace

We produce not only efficient air flow carbonization furnace, but also green wood charcoal carbonization furnace because the materials in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization stove with there own pipes can make combustible gas diversion to the charring stove combustion zone to the second fire heating. More environmentally friendly and energy saving.
Certifications
Our Service

Pre-Sales Service

a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.

After-Sales Service

a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.

FAQ

Welcome to contact us


 If you are interested to our  air flow carbonization furnace, firstly answer me these questions below:


1. Name of your raw material ?

2. How many raw material you have one day?

3. How many hours you want to working per day?

4. What's the output size you need?

5. The usage of the final product ?

6. Electrical supply in your place?

7.Any other special demands  you want to let us know?

We would try the best to help you to do this.
